How to Fix Mechanical Sensor Abnormality in Mars 5 Ultra?

If you own a Mars 5 Ultra resin 3D printer and you’re facing the frustrating error “mechanical sensor abnormality”, you’re not alone. Many users have reported this problem, especially when the printer is either new or after a firmware update. But don’t worry, this guide will walk you through everything you need to know to understand, troubleshoot, and fix it yourself.

What Is the Mechanical Sensor Abnormality in Mars 5 Ultra?

The mechanical sensor in the Mars 5 Ultra is used to detect the platform’s position during the auto-leveling process. It ensures that the build plate contacts the LCD screen properly before a print begins. When the printer shows “mechanical sensor abnormality,” it means it’s detecting an unexpected error in that contact process, either the platform isn’t touching the sensor correctly, the sensor is malfunctioning, or there’s a firmware or hardware issue.

Common Causes of the Error

Before jumping into the solutions, let’s understand the possible reasons this error may appear:

• Platform misalignment during auto-leveling.
• Loose or damaged sensor wires.
• Dust or debris is blocking the sensor or the build plate.
• Firmware bugs or glitches.
• Excess resin is affecting platform motion or sensor contact.
• Z-axis movement issues such as motor skipping or screw misalignment.

Tools You May Need

• Allen keys (included with the printer).
• Isopropyl alcohol and paper towels.
• A soft brush or air duster.
• Firmware files (from the ).
• USB stick (formatted FAT32) for firmware updates.

Power Off and Restart

The simplest first step is a clean restart.

1. Turn off the printer using the power button.
2. Wait 30 seconds to allow full shutdown.
3. Power it back on and check if the error clears.

Sometimes the printer may misread a sensor due to a temporary glitch, and a reboot resets the system.

Check Resin Vat and Build Plate

Excess resin can cause the build plate to stick or trigger false readings.

1. Remove the resin vat and clean it thoroughly with isopropyl alcohol.
2. Check if any cured resin is stuck on the FEP film.
3. Remove the build plate, clean it, and reinstall it firmly.

Make sure no resin drips or residue is on or around the mechanical sensor.

Re-Level the Build Plate

Improper leveling is one of the most common causes of this error.

• Go to Settings, Manual, Home on the touchscreen.
• Use the provided paper method to adjust the build plate until you feel slight friction.
• Tighten all the screws once the plate is aligned.
• Save the new Z=0 position.

Run the leveling process again and check if the error still appears.

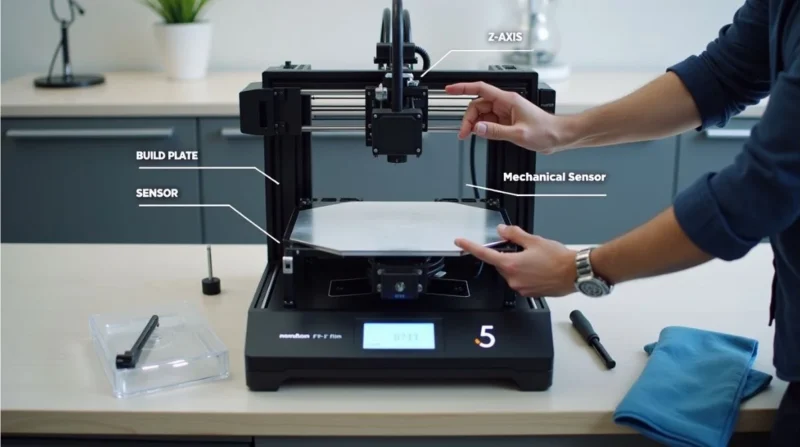

Inspect the Mechanical Sensor

With the power of:

• Open the Z-axis cover and visually inspect the mechanical sensor module.
• Check the small spring-loaded arm under the build platform that detects pressure.
• Ensure nothing is bent, broken, or out of alignment.
• Gently press it to see if it moves smoothly.

If it feels stuck or loose, the sensor might be faulty or need realignment.

Check for Loose Connections

Sometimes the cable connecting the sensor to the mainboard may become loose.

• Open the electronics compartment carefully.
• Find the cable running from the sensor to the mainboard.
• Gently disconnect and reconnect the plug.
• Make sure it is secure and properly inserted.

Avoid pulling too hard or damaging the connector pins.

Update or Reinstall Firmware

Some versions of firmware may contain bugs that misinterpret sensor input.

1. Go to Elegoo’s and download the latest firmware for Mars 5 Ultra.
2. Format a USB drive to FAT32 and place the firmware files in the root directory.
3. Insert the USB into the printer and power it on.
4. Follow the on-screen instructions to update.

This can often resolve software-related detection problems.

Test the Z-Axis Movement

If the build plate moves unevenly or gets stuck, it might confuse the sensor.

• Use the touchscreen to move the Z-axis up and down.
• Listen for any grinding noises.
• Watch for hesitation or jumping.

If movement isn’t smooth, clean and lubricate the Z-axis lead screw using light machine oil or grease. This helps restore accurate plate motion.

Preventive Tips to Avoid Future Sensor Errors

Once you’ve fixed the problem, it’s wise to take care of your machine to prevent it from coming back:

• Keep the build area clean: Wipe down the platform and sensor after every few prints.
• Avoid overfilling the vat: Too much resin can cause overflow that affects sensor behavior.
• Check firmware regularly: Keep it up-to-date, but only from trusted sources.
• Don’t overtighten leveling screws: It can stress the sensor during contact.
• Run self-tests: Every few weeks to catch small issues early.

When to Replace the Sensor?

If you’ve tried everything above and the error persists, the sensor might be defective. Here are the signs it needs replacement:

• The sensor doesn’t move at all when pressed.
• You hear clicking or see sparks near the module
• The firmware update does nothing.
• Continuous false triggering after every print.

FAQ

Q1. Will the printer still work if I bypass the sensor temporarily?

In some cases, advanced users disable auto-leveling through firmware mods, but this is not recommended unless you know what you’re doing. It can void your warranty.

Q2. How long does a sensor last on average?

With proper care, the sensor should last several years. Most issues are not from wear, but from debris, misalignment, or bad connections.

Q3. Is the mechanical sensor abnormality covered under warranty?

Yes, if your unit is still within the warranty period. Contact support with photos and a description of your issue.

Final Thoughts

The mechanical sensor abnormality, the Mars 5 Ultra issue, can be frustrating, but it’s usually easy to fix with a bit of care and patience. Whether it’s cleaning, leveling, checking connections, or updating firmware, the steps above should help you solve it quickly. By keeping your printer clean, up-to-date, and properly aligned, you’ll enjoy smoother prints and fewer interruptions.
